MG9
MG9 Elastomer Bellow Mechanical Seal replace BURGMANN MG9, AES P03, VULCAN 24, JOHN CRANE 521
Description

Description:
MG9 mechanical seal,for blower pump, diving pump,circulating pump,
replace the mechanical seal of Burgmann MG9


Operational Conditions:
Temperature: -20℃ to +120℃
Pressure: ≤1.0MPa
Sp
eed: ≤10m/s

Seat Type:
Standard: G60


Materials:
Stationary Ring: Silicon Carbide  Reaction Bonded, Ceramic(Alumina), Silicon Carbide Sintered Pressureless, Ni-binder Tungsten
Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide  Reaction Bonded, Silicon Carbide Sintered Pressureless,Ni-binder Tungsten Carbide
Spring and Metal Parts: Stainless Steel,Stainless Steel
Secondary Seal: Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene


Applications:
Clean water,
Sewage water
Oil and other moderately corrosive fluids

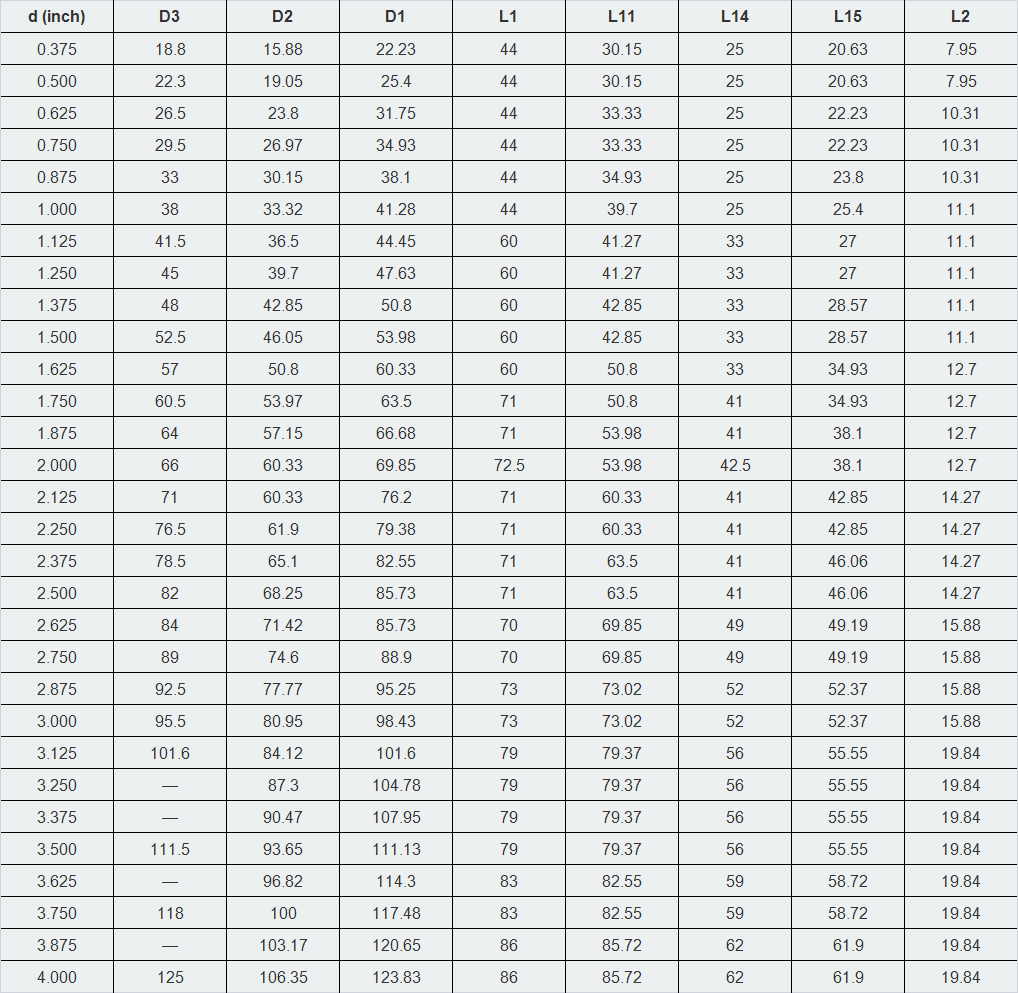

Specifications
